In an era of evolving physical threats, securing a facility’s entry points requires a defense-in-depth approach. While perimeter fencing, automated rising bollards, and biometric access control manage visible entry pathways, the underside of a vehicle remains a glaring physical vulnerability. The chassis of a car, van, or heavy commercial truck offers an unmonitored space to conceal weapons, contraband, tracking devices, or vehicle-borne improvised explosive devices (VBIEDs).
To eliminate this vulnerability, forward-thinking security directors, facility managers, and procurement officers are moving away from manual inspection methods. Replacing a security guard holding a convex mirror with a digital under vehicle scanning system is now an operational standard for modern threat mitigation. Manual inspections are notoriously slow, highly prone to human fatigue, and put security personnel in direct harm’s way.
At UVSS, as an industry-leading reseller of enterprise physical security and checkpoint screening technologies, we partner with critical infrastructure teams to deploy zero-fail threat detection networks. In this comprehensive guide, we examine how a modern under vehicle scanning system operates, key features to prioritize during technical procurement, and how to choose an Under Vehicle Inspection Solution for High-Security Facilities.
The Operational Failures of Manual Inspection Methods
Before evaluating digital checkpoint solutions, it is essential to look at the hidden costs and liabilities associated with legacy inspection methods.
Relying on physical inspection mirrors introduces several vulnerabilities:
- Extreme Human Error: Expecting security staff to mentally catalog thousands of chassis variations under harsh lighting conditions leads to severe oversight. Subtle structural alterations or hidden magnetic boxes are easily missed.
- Severe Traffic Congestion: A thorough manual inspection can take up to two minutes per vehicle, creating massive bottlenecks during morning shift changes or peak supply chain delivery windows.
- Zero Forensic Audit Trails: Handheld mirrors provide no visual logging. In the event of an incident, security leads have no historical visual record of the vehicle’s undercarriage upon entry.
By implementing an automated under vehicle scanning system, facility managers transform a slow, subjective process into a standardized, high-speed digital operation.
How an Automated Under Vehicle Scanning System Works
An enterprise under vehicle scanning system combines high-speed line-scan optical cameras, synchronized LED illumination arrays, and sophisticated image-stitching software.
┌─────────────────────────────────────────────────────────────┐
│ UNDER VEHICLE SCANNING SYSTEM WORKFLOW │
├─────────────────────────────────────────────────────────────┤
│ 1. In-road sensors detect incoming vehicle approach │
│ 2. Shadowless LED arrays flood the chassis with light │
│ 3. High-speed cameras capture digital line-scan slices │
│ 4. System software stitches composite HD image in seconds │
│ 5. Integrated AI cross-references scan against baseline │
└─────────────────────────────────────────────────────────────┘
The scanning cycle executes automatically within seconds as the vehicle drives across the unit:
- Drive-Over Sensor Activation: Inductive loops or directional radar sensors detect the vehicle’s approach, instantly activating the scanner bed from energy-saving standby mode.
- High-Intensity Illumination: Heavy-duty, shadowless LED banks flood the vehicle’s undercarriage with light, eliminating shadows around fuel tanks, structural frames, and exhaust assemblies.
- Digital Line-Scanning: Advanced optics capture thousands of horizontal image frames per second as the vehicle moves continuously over the scanner.
- Composite Stitched Visualization: The internal processing engine stitches these visual frames into a single, high-definition composite photograph, outputting it to the guard booth console in real time.
Deploying a digital under vehicle scanning system allows guards to inspect oncoming chassis from the safety of a remote guard booth or Security Operations Center (SOC).
Key Technical Capabilities to Evaluate
When sourcing an under vehicle scanning system, security managers must look beyond standard resolution specs. To ensure your investment delivers long-term performance, evaluate these core capabilities:
1. Artificial Intelligence & Automated Anomaly Detection
The primary technical breakthrough in modern perimeter security is machine learning integration. An AI-enabled under vehicle scanning system automatically compares the live undercarriage image against a database reference scan of the same vehicle model (or a past entry scan of that specific vehicle). If the software detects added wiring, unexpected metallic enclosures, or structural modifications, it instantly highlights the threat area on the screen for the operator.
2. Automatic Number Plate Recognition (ANPR) Integration

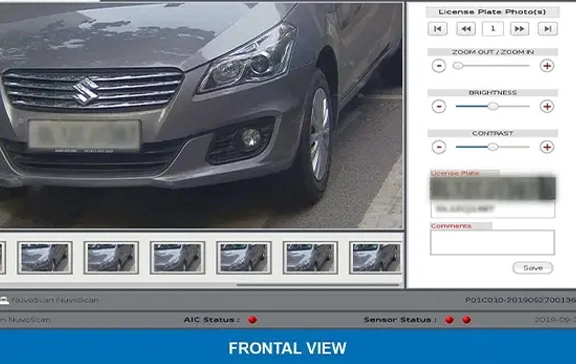

Comprehensive perimeter screening requires multi-factor data mapping. A top-tier under vehicle scanning system works in tandem with ANPR cameras and driver-facing scene cameras. When a vehicle passes over the drive-over unit, the platform captures its registration plate, links the plate directly to the undercarriage scan, and logs the complete entry record into a centralized database.
3. Ruggedized Environmental Engineering
Because drive-over units are embedded into concrete or asphalt, durability is non-negotiable. Look for an under vehicle scanning system housed in heavy-duty casing with an IP68 weatherproofing rating. The unit must feature integrated climate controls (heating and cooling elements) to prevent condensation, lens fogging, or freezing, while supporting axle loads exceeding 30 to 40 tonnes to handle heavy commercial truck traffic.
Selecting the Optimal Deployment Topology
Different checkpoints present unique civil engineering and operational requirements. An under vehicle scanning system is typically available in two physical configurations:
| Deployment Type | Ideal Operational Application | Key Advantages |
| Fixed (Flush-Mounted) | Permanent military gates, airports, corporate headquarters, data centers | Embedded level with the road surface; engineered for permanent, heavy-duty truck traffic over long lifecycles. |
| Portable (Surface-Mounted) | Temporary VIP events, mobile military checkpoints, border spot-checks | Surface-mounted ramp design; can be set up and operational in under 30 minutes without road excavation. |
Whether your project requires permanent civil engineering integration or modular mobile ramps, selecting the right Under Vehicle Inspection Solution for High-Security Facilities requires a complete evaluation of your site traffic and throughput requirements.
Why Choose UVSS as Your Specialized Reseller Partner?
Selecting high-assurance screening hardware is a complex technical process. At UVSS, we serve as physical perimeter security consultants rather than simple catalog vendors. Sourcing your under vehicle scanning system through our reseller network guarantees impartial advice tailored specifically to your site’s physical layout and risk profile.
We support your engineering and security directors through every phase of deployment:
- Initial site surveys, traffic flow analysis, and layout recommendations.
- Selecting the ideal fixed or surface-mounted under vehicle scanning system.
- Network engineering and software integration with existing barrier arms, bollards, and Video Management Systems (VMS).
- Comprehensive guard operator training and long-term tech support to ensure maximum system uptime.
Conclusion: Secure Your Baseline and Protect Your Facility
Unmonitored undercarriages represent an unacceptable blind spot in modern facility security. Relying on legacy mirrors delays traffic and exposes your property to concealed threats. Upgrading your checkpoint infrastructure to an intelligent under vehicle scanning system is the most effective way to establish absolute perimeter visibility, automate entry compliance logging, and safeguard your facility.
